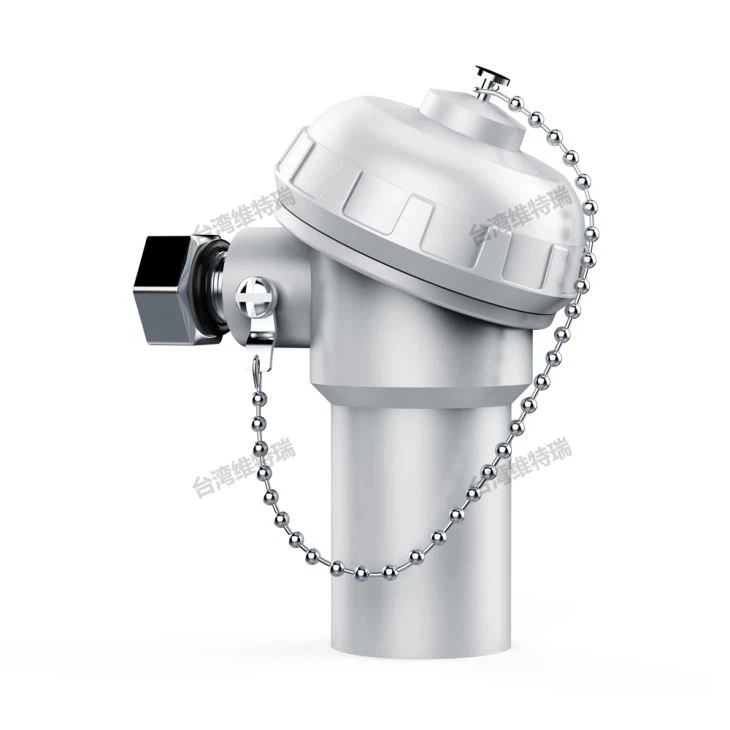

Integrated Transmitter
Product type
ITM series transmitter includes: common single type, double type, separate type, waterproof type, explosion-proof type, etc.
The technical parameters of integrated transmitter
|
1.Basic parameter requirements
|
|||
|
The power supply |
20～30Vdc |
Cable socket model |
(SY)X12KX3P |
|
Sensor housing |
Aluminum materials, solidified packaging |
Sensor sensitivity |
Variation self compensation |
|
Which leads to the way |
Side out or up out |
Case insulation |
|
|
Sensor installation |
One piece M8 |
size |
Ф40 x 80 mm |
|
weight |
370 g |
The output current |
4～20mA |
|
Output impedance |
≤500Ω |
Measure the direction |
general |
|
Using the environment: the temperature - 20 ℃ ~ 60 ℃ relative humidity of 90% or less |
|||
|
2.Scale range
|
|||
|
Vibration displacement |
|||
|
D01 |
0～100μm |
D02 |
0～200μm |
|
D03 |
0～500μm |
||
|
The vibration intensity |
|||
|
V04 |
0～10.0mm/S |
V 05 |
0～20.0mm/S |
|
V06 |
0～50.0mm/S |
||
3.Integrated Transmitter pick up line method
1). The (1) pin of the plug is +24V when the two wires are output; (2) the pin is 4-20ma output;(3) empty feet
2). The (1) pin of the plug is +24V when the three-wire output is performed;(2) the pin is 4-20ma output;(3) feet
FAQ
Q: Why to choose WTR?
A: We have 10+ years experience: From recommending suitable products to after-sale, one-stop worry-free service.
Q: How long is the warranty?
A: 12 months.
