VA-Ⅱ Dual Channel Vibration Analyzer
VA-Ⅱ Dual Channel Vibration Analyzer Technical Data
(1) Vibration measurement and spectrum analysis frequency response: 0.5Hz-10KHz;
(2) Dynamic balance speed range: 120-60000 rpm
(3) Automatic range and manual range optional
(4) Can be connected to many types of sensors: speed, eddy current, piezoelectric
acceleration, etc.
(5) Rechargeable battery power, continuous operation for more than 10 hours
(6) 8th order elliptical anti-aliasing filter, speed tracking bandpass filtering
(7) Spectrum analysis frequency: 8 files in 1, 2, 5 points
(8) Vibration measurement accuracy 5%
(9) Maximum range/highest resolution for vibration and spectrum analysis:
|
Measurement parameter
|
Maximum range
|
Maximum range
|
|
Acceleration peak
|
250 m/s 2
|
0.001 m/s 2
|
|
Speed effective value
|
200 mm/s
|
0.001 mm/s
|
|
Displacement peak-to-peak
|
5000 μm
|
1 μm
|
|
Envelope RMS
|
25 m/s 2
|
0.1 m/s 2
|
|
Voltage effective value
|
10 V
|
0.1 mV
|
(10) Small size (210 * 130 * 40mm), light weight (1200g)
(11) It can be equipped with equipment condition monitoring software, establish equipment maintenance database on the computer, perform trend analysis, spectrum analysis, waveform analysis, hundred-line spectrum analysis, and three-dimensional spectrum analysis.

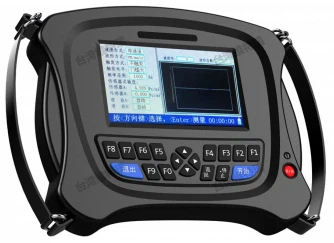

VA-Ⅱ Dual Channel Vibration Analyzer display
FAQ
Q: What inco terms does your company use?
A: About inco terms,we support EXW,FOB,CIF,CFR,etc..
